TR-D5124 5.3-64
Technical specifications
PoE:
69Audio:
Audio-inAudio-out
WDR:
RWDR 120 dBFrame rate:
25Bitrate (Mb/sec):
8Archive, Tb:
151Power supply:
AC 24 VOverview

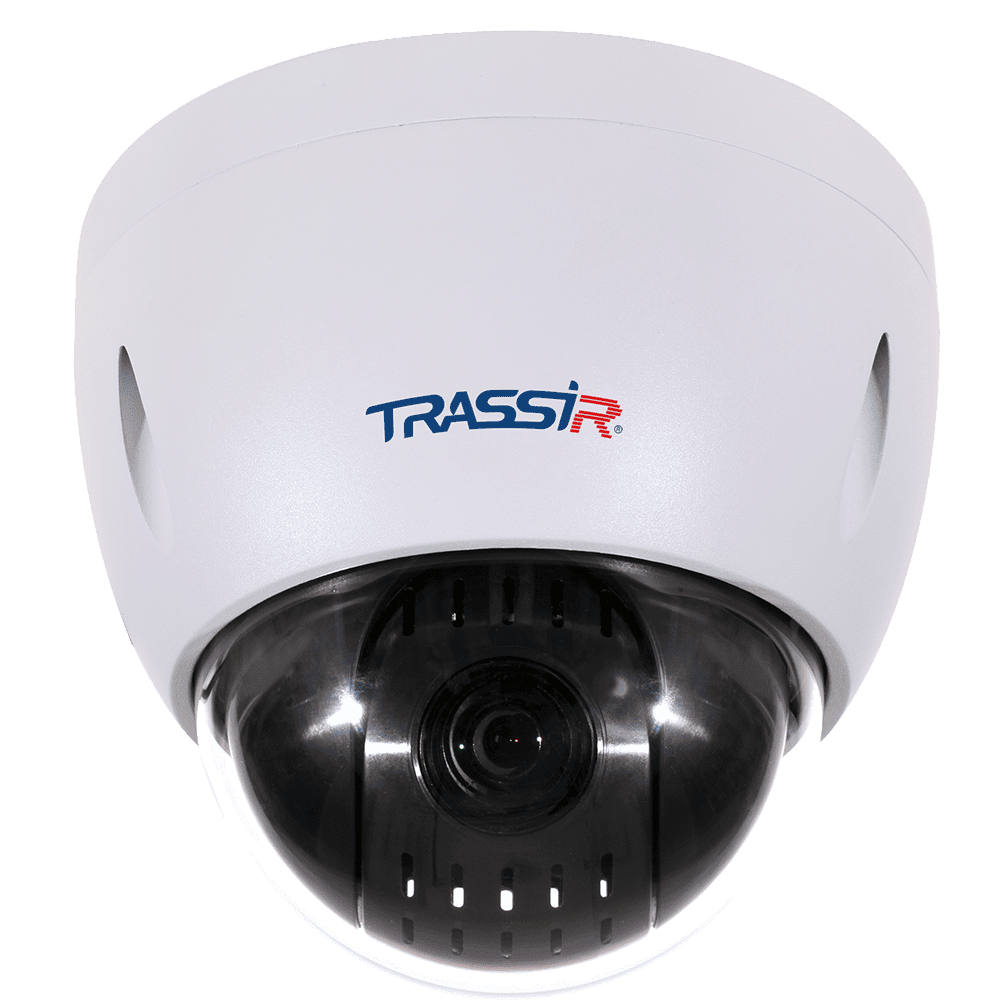

TRASSIR TR-D5124
2 megapixel (1920 × 1080) PTZ IP camera is supplied in a housing that meets the requirements of the enclosure protection against moisture and dust IP66, against mechanical stress - IK10, which together with an operating temperature range of -30 ° C ... +60 ° C ensures stable operation of the device outdoors at any time of the year. Tilt range - 90 °, rotation - 360 °. Speed - up to 300 ° per second.
Functionality:
Basics:
TRASSIR TR-D5124 is built on a 1 / 2.8 "sensor with 0.005 lux sensitivity. Equipped with a motorized lens with a focal length of 5.3 mm ~ 64.0 mm, aperture F / 1.6 ~ F / 4.4, automatic iris and autofocus. Optical zoom - × 12, digital zoom - × 16.
The camera supports day / night mode with a mechanical IR-cut filter to refract IR rays that distort color rendition (in the dark, the filter moves away from the matrix, increasing its sensitivity in the IR range). For compression, H.265 +, H.265, H.264 codecs are provided. Broadcast speed - 25 fps. The interfaces are represented by an RJ-45 network port, audio input and output, two alarm inputs and outputs, a slot for a microSD card with a capacity of up to 256 GB, a power connector (PSU included). Power supply - AC 24 V. Power 12 W. Dimensions - Ø170 × 155 mm, weight - 1800 g.
2 megapixel (1920 × 1080) PTZ IP camera is supplied in a housing that meets the requirements of the enclosure protection against moisture and dust IP66, against mechanical stress - IK10, which together with an operating temperature range of -30 ° C ... +60 ° C ensures stable operation of the device outdoors at any time of the year. Tilt range - 90 °, rotation - 360 °. Speed - up to 300 ° per second.
Functionality:
- - Ultra DNR - 2D and 3D noise reduction.
- - WDR 120 dB - reducing the influence of changes in the level of illumination on the image quality; double scanning with different exposures and then combining two frames into one balanced in terms of brightness.
- - BLC - Backlight Compensation.
- - HLC - local exposure masking.
- - Defog - Contrast enhancement that neutralizes blur introduced by fog, smoke or fogging of the optics.
Basics:
TRASSIR TR-D5124 is built on a 1 / 2.8 "sensor with 0.005 lux sensitivity. Equipped with a motorized lens with a focal length of 5.3 mm ~ 64.0 mm, aperture F / 1.6 ~ F / 4.4, automatic iris and autofocus. Optical zoom - × 12, digital zoom - × 16.
The camera supports day / night mode with a mechanical IR-cut filter to refract IR rays that distort color rendition (in the dark, the filter moves away from the matrix, increasing its sensitivity in the IR range). For compression, H.265 +, H.265, H.264 codecs are provided. Broadcast speed - 25 fps. The interfaces are represented by an RJ-45 network port, audio input and output, two alarm inputs and outputs, a slot for a microSD card with a capacity of up to 256 GB, a power connector (PSU included). Power supply - AC 24 V. Power 12 W. Dimensions - Ø170 × 155 mm, weight - 1800 g.
Documentation
TR-D5124 passport (eng).pdf
