TR-D4B6 v2 2.7-13.5

TRASSIR TR-D4B6 v2 (2.7-13.5 mm)

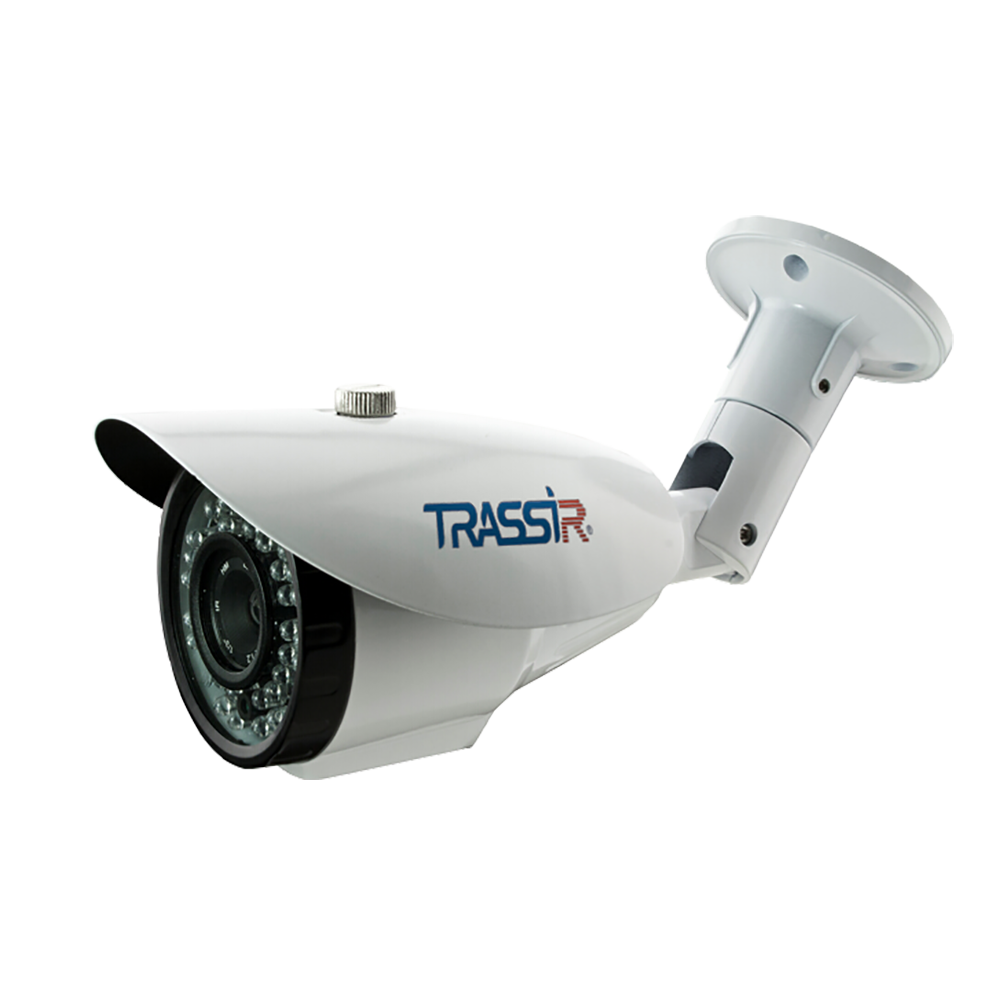

4 MP (2560 × 1440) IP-camera adapted for outdoor use at any time of the year - under the direct influence of precipitation: the metal case is protected from dust and moisture according to the IP67 standard, the operating temperature range is –40 ° C ... +60 ° C, provided lightning protection TVS 4000 V.

• - Detection of people, movement, crossing of virtual lines, intrusion into prohibited areas and exiting from the area.
• - WDR 105 dB - Eliminates the effect of changes in the level of illumination on the picture quality.
• - 3D DNR - Noise Reduction.
• - Corridor mode (shooting in vertical resolution).
• - Defog - elimination of blur caused by fog or smoke in the scene.
• - BLC - backlight correction.
• - Day / night mode with mechanical IR cut filter.

TR-D4B6 v2 (2.7-13.5 mm) is built on a 1/3 "progressive scan CMOS sensor, 0.003 lux sensitivity  at F / 1.3. Equipped with a 2.7 ~ 13.5 mm variable focal length lens, 93 ° ~ horizontal field of view 28 °, vertical - 50 ° ~ 16 °. For compression, H.265 +, H.265 and H.264 codecs are provided, for night time surveillance - IR illumination with a range of 35 m. Broadcast speed - 25 fps. Bit rate - 8 Mbps / sec. Power supply - DC 12 V or PoE. Maximum power consumption - 6.2 W. Size - 243.6 × 92.0 × 86.4 mm. Weight - 560 g. Case material - metal.
