TR-D3283WDZIR4 2.7-13.5

Book A Demo How To Buy

Technical specifications

PoE:

Audio:

Built-in microphone
Audio-in
Audio-out

WDR:

RWDR 120 dB

Frame rate:

Electronic shutter speed:

1/3 ~ 1/10 000 s

Digital noise Reduction:

3D DNR

Corridor mode:

Yes

Bitrate (Mb/sec):

Archive, Tb:

151

Power supply:

12V DC

Overview

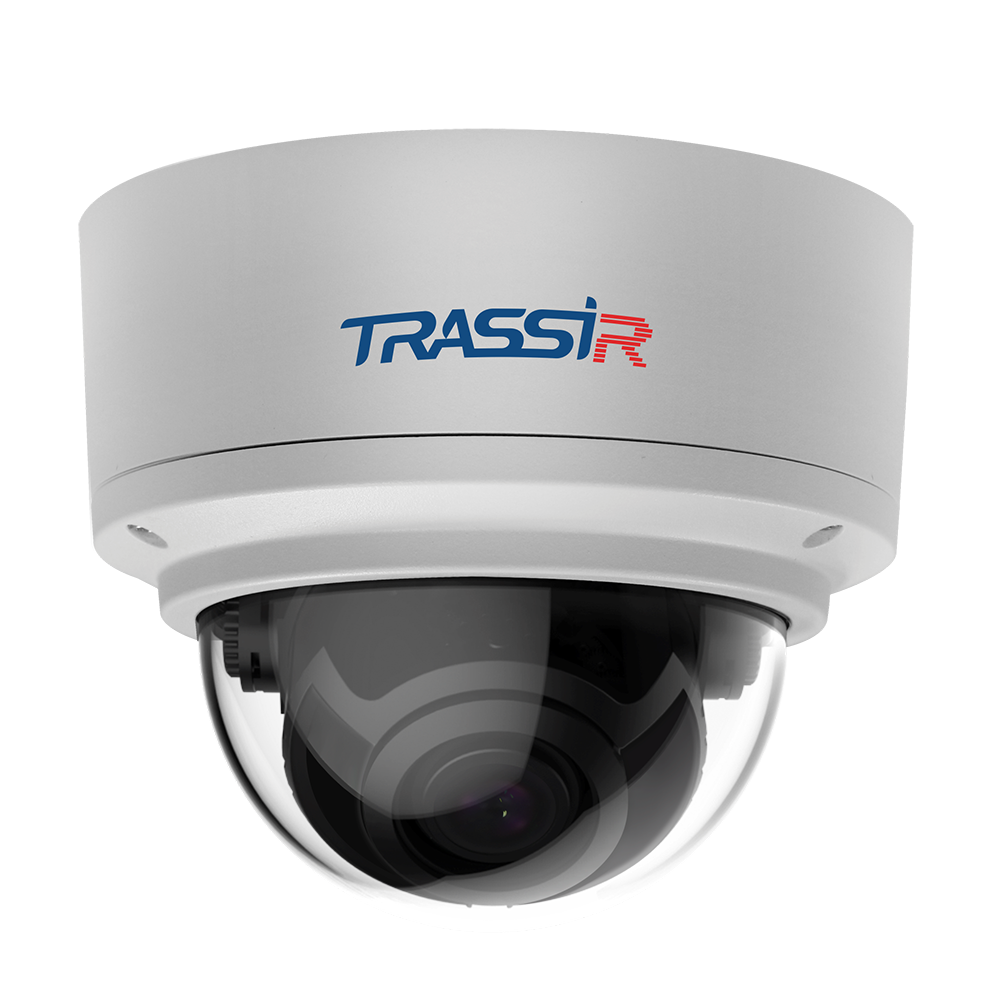

8 MP (3840×2160) TRASSIR TR-D3283WDZIR4 2.7–13.5 IP camera is designed for year-round outdoor use in places of direct access: the housing protection against mechanical impact complies with the IK10 code, against dust and moisture — to the IP67 standard, operating temperatures from -40 ° C… +60 °C, lightning protection — TVS 6000 V.

Functionality

Built-in microphone.
IR illumination with a range of 40 m.
Detection of movement, faces, virtual line crossing (with counting), left objects.
Detection of intrusion into the zone, exit from the area (with filtering of people and vehicles).
Day/night mode with mechanical IR filter.
WDR 120 dB - reducing the effect of different-contrast lighting on picture quality.
3D DNR - noise reduction.
BLC - software correction of the overexposed background.
Defog - Enhances contrast to reduce the effect caused by fog or smoke.
Compression H.264, H.265, H.264+, H.265+.
Supported resolution: main stream - 3840x2160, 3200x1800, 3072x1728, 2560x1440, 1920x1080; additional - 1280x720, 704x576, 352x288.
Frame rate: main stream - 15 fps (WDR on 8 MP), 20 fps (WDR off 8 MP, 6 MP), 25 fps (5 MP and below), additional - 20 fps.
Bitrate - 13 Mbps.

Basic

TR-D3283WDZIR4 2.7–13.5 is built on a 1/2.8-inch Sony Starvis CMOS sensor with 0.003 lux sensitivity. Equipped with a 2.7 ~ 13.5mm motorized lens, F/1.3 aperture, 104° ~ 35° horizontal, 56° ~ 20° vertical, auto focus. Interfaces: RJ-45, audio output, audio input, alarm output, alarm input, microSD card slot up to 128 GB. Power supply - DC 12 V, PoE. Power - up to 8.4 W. Size - Ø142.2 × 113.4 mm, weight - 793 g.

Documentation

TR-D3283WDZIR4_passport_en.pdf
