TR-D3221WDIR3 v2 2.8
Technical specifications
PoE:
69Audio:
Built-in microphoneAudio-in
Audio-out
WDR:
RWDR 120 dBFrame rate:
30Electronic shutter speed:
1/2 ~ 1/1 000 sDigital noise Reduction:
3D DNRCorridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

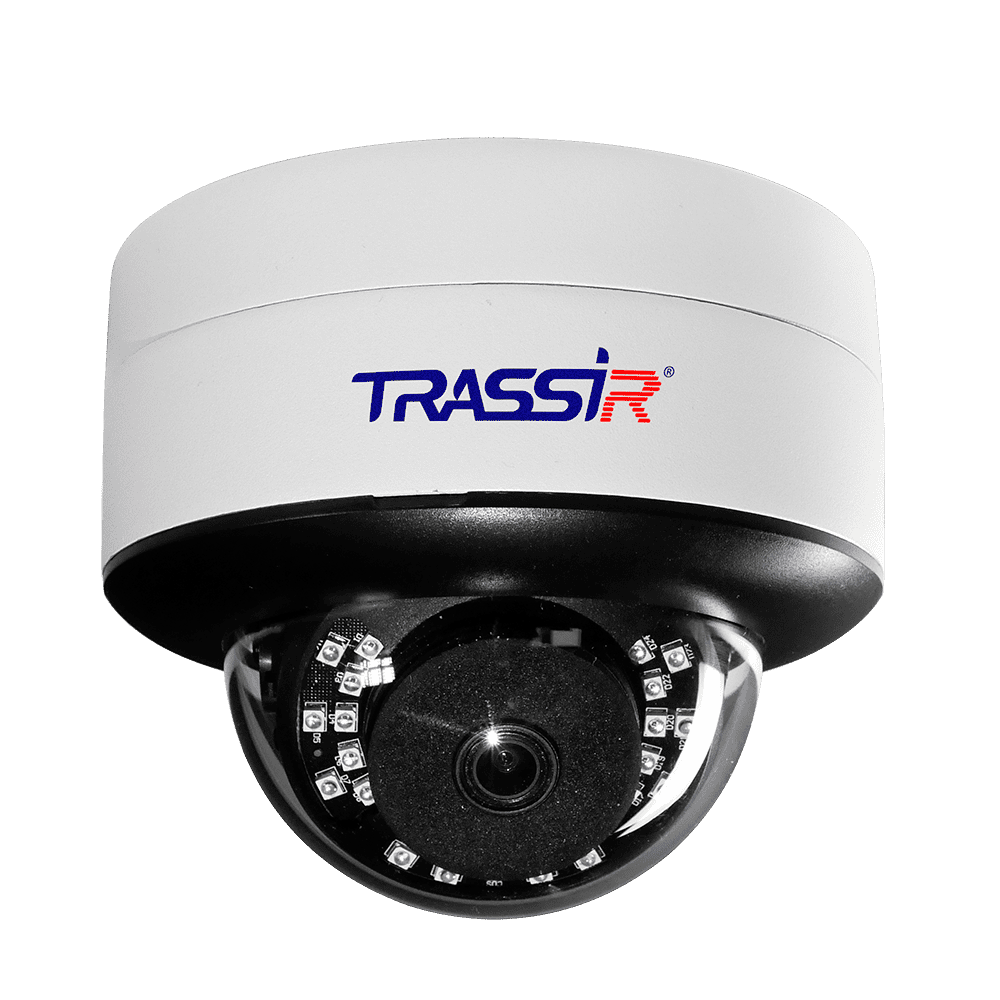

2 MP (1920×1080) IP-camera TRASSIR TR-D3221WDIR3 v2 2.8 is adapted for outdoor use regardless of the season and location: protection against moisture and dust - IP66, against mechanical stress - IK10, operating temperatures from -40 ° C… +60 °C, lightning protection — TVS 4000 V.
Functionality
Basics
H.265+, H.265, H.264 codecs are provided for compression, traffic optimization - two-stream broadcasting, audio control - integrated microphone, night video surveillance - IR illumination with a range of 30 m. Bit rate - 8 Mbps. Interfaces: RJ-45 network port, microSD slot up to 128 GB, audio in, audio out, alarm in, alarm out. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
Functionality
- Detect motion, people, line crossing, zone intrusion, loitering, traffic, people counting.
- WDR 120 dB - Reduces the effect of different contrast lighting on image quality.
- 3D DNR - spatial noise reduction.
- Corridor mode - shooting in vertically oriented resolution.
- Defog - increase the contrast to eliminate the effect introduced by fog, smoke.
- BLC - backlight compensation.
- Day/Night mode with ICR: When there is sufficient light, the filter blocks IR rays, optimizing color reproduction, and in the dark, mechanically shifts away from the sensor to increase its sensitivity.
- Lens with a fixed focal length of 2.8 mm, a horizontal angle of view of 101°, a vertical angle of 55°, aperture of F/1.8.
- 1/2.8 inch CMOS sensor, 0.005 lux sensitivity.
- The broadcast speed and resolution of the main stream is 25 fps 1920×1080, 1280×960, 1280×720, the secondary stream is 25 fps 704×576, 640×480, 640×360, 352×288.
Basics
H.265+, H.265, H.264 codecs are provided for compression, traffic optimization - two-stream broadcasting, audio control - integrated microphone, night video surveillance - IR illumination with a range of 30 m. Bit rate - 8 Mbps. Interfaces: RJ-45 network port, microSD slot up to 128 GB, audio in, audio out, alarm in, alarm out. Power supply - DC 12 V, PoE. The maximum power consumption is 5.5 W. Size - Ø116.10×96.51 mm. Weight - 450 g.
Documentation
TR-D3221WDIR3v2_passport_en.pdf
