TR-D2D5 v2 3.6

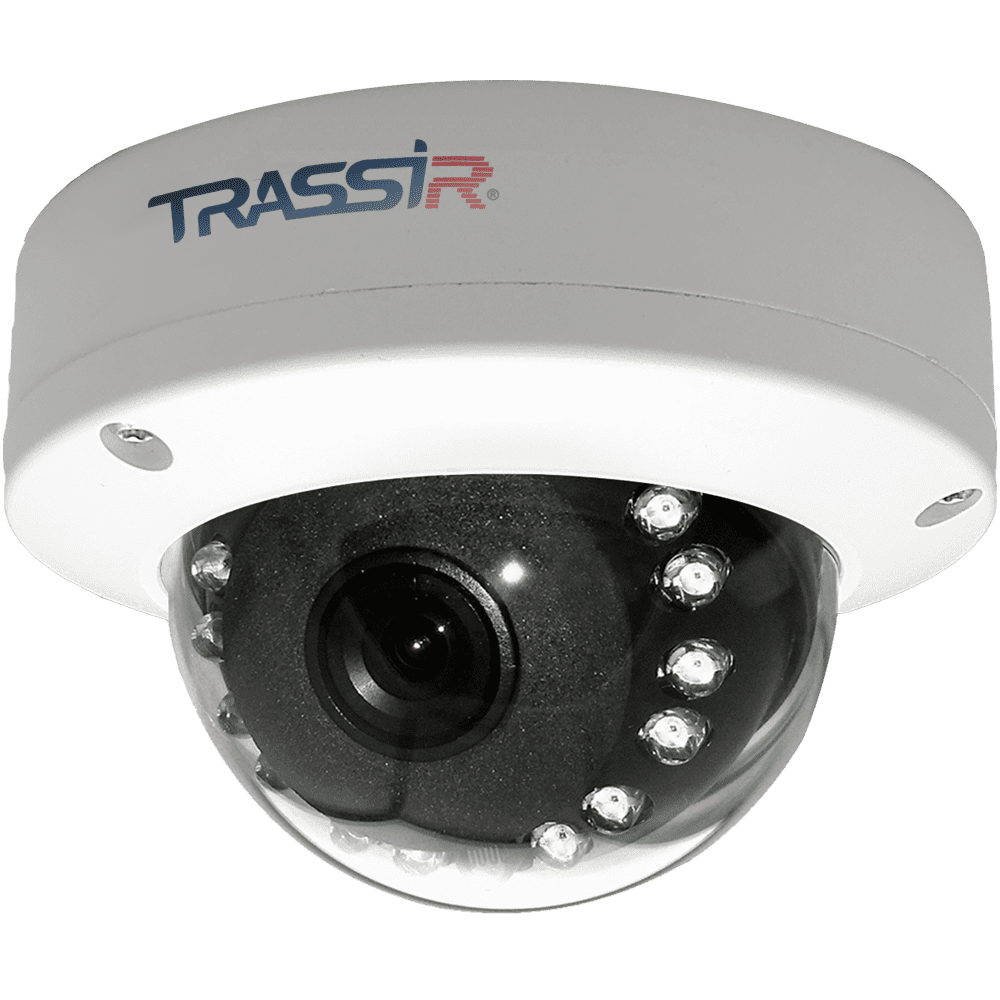

TRASSIR TR-D2D5 v2 (3.6 mm)

The outdoor 2 Mp (1920 × 1080) IP camera is built on a powerful processor and a highly sensitive matrix capable of forming a color image even in low light - it broadcasts informative color video for a longer time, produces a picture with improved color rendition and detail. Suitable for night video surveillance - equipped with IR illumination with a range of 15 m.

Functionality:

• - Data transfer rate is 25 frames per second.
• - Compression H.265 +, H.264 +, H.265, H.264.
• - Bitrate 8 Mbps.
• - Protection of the case against dust and moisture - IP66.
• - Protection of the case against mechanical influences - IK10.
• - Lightning protection - TVS 4000 V.
• - Operating temperatures from –40 ° C… +60 ° C.
• - WDR 105 dB - the selection of the optimal exposure for light conditions to minimize the disadvantages caused by different contrast lighting.
• - 3D DNR - spatial noise reduction.
• - Day / night mode with ICR: in sufficient light, the filter refracts IR rays, optimizing color rendition, and in the dark it is mechanically shifted away from the matrix to increase its sensitivity and the backlight can work.
• - Defog - enhances the contrast to eliminate the effect of fog or smoke in the scene.
• - BLC - Back Light Compensation.
• - Video analytics: motion and people detection, virtual line crossing detection, zone intrusion.
• - PoE support - receiving power over twisted pair.

TR-D2D5 v2 (3.6 mm) is equipped with a 3.6 mm fixed focal length lens, 81 ° horizontal field of view, 44 ° vertical field, F / 1.8 aperture. Power supply - DC 12 V, PoE. The maximum power consumption is 2.4 watts. Dimensions - Ø95 × 63 mm. Weight - 295 g. Case material - metal.
