TR-D3181IR3 v3 3.6

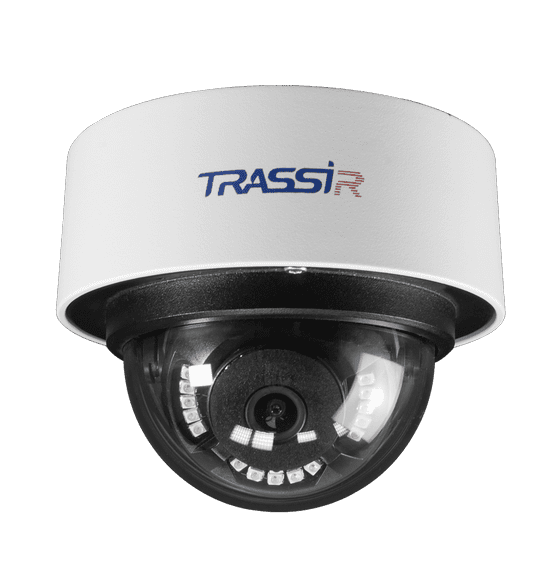

8 MP (3840×2160) TRASSIR TR-D3181IR3 v3 3.6 IP camera works stably outdoors in a place of direct access at a temperature of -40 °C ... +60 °C, comes in a metal case protected from moisture and dust according to the IP67 standard, mechanical impacts - IK10. For night video surveillance, it is equipped with IR illumination with a range of 30 m.

Functionality

• Motion detection, virtual line crossing, area intrusion, area exit, abandoned and missing objects, loitering, crowd, parking, sound events, defocus, scene change.

• WDR 120 dB - Reduces the effect of different contrast lighting on image quality.

• 3D DNR - spatial noise reduction.

• Corridor mode - shooting in vertically oriented resolution.

• Defog - increase the contrast to eliminate the effect introduced by fog, smoke.

• BLC - backlight compensation.

• Lightning protection (TVS 4000 V).

• Built-in microphone.

• Compression H.265+, H.265, H.264+, H.264.

• Broadcast speed and resolution of the main stream - 15 fps 3840 × 2160, 25 fps 2592 × 1944, 2560 × 1440, 2304 × 1728, 2048 × 1536, 1920 × 1080, 1280 × 960, additional - 15 fps 1280 × 720, 704 × 576 , 352×288.

Basics

TR-D3181IR3 v3 3.6 is built on a 1/2.7" CMOS sensor with 0.005 lux sensitivity. Supports day/night mode with ICR: when there is enough light, the filter blocks IR rays, optimizing color reproduction, and in the dark it is mechanically shifted away from the matrix to increase its sensitivity is 10 Mbps bitrate, equipped with a fixed lens with a focal length of 2.8 mm, a horizontal angle of view of 105°, a vertical angle of view of 56°, an aperture of F/1.8, an RJ-45 network port, and a microSD slot with a capacity of up to 128 GB. Power supply - DC 12 V, PoE Maximum power consumption - 4.5 W Size - Ø112.2 × 89.7 mm Weight - 480 g.
