TR-D2121CL3W 2.8
Technical specifications
PoE:
69Audio:
Built-in microphoneBuilt-in speaker
WDR:
RWDR 120 dBFrame rate:
25Corridor mode:
YesBitrate (Mb/sec):
8Archive, Tb:
151Power supply:
12V DCOverview

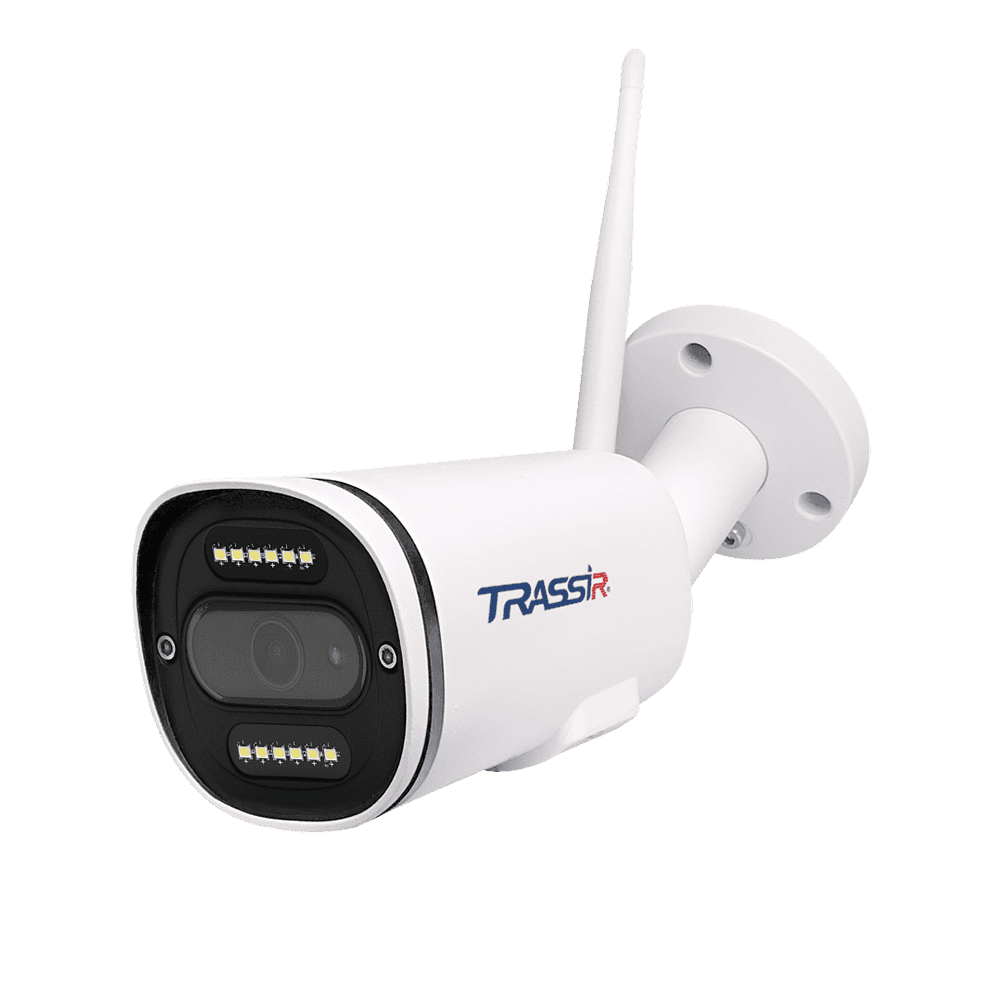

TRASSIR TR-D2121CL3W (2.8 mm)
2 MP (1920 × 1080) IP-camera is equipped with a Wi-Fi module for wireless data transmission, is based on a high-sensitivity (0.0015 lux) 1 / 2.8 "matrix, equipped with a fast (F / 1.0) lens and LED-backlight with a range of 35 m, due to which it broadcasts color video around the clock. Adapted to outdoor use at any time of the year: the case is protected from dust and moisture according to the IP66 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 4000 V.
Functionality:
TR-D2121CL3W (2.8 mm) is equipped with a microSD slot with a capacity of up to 128 GB. By default, after inserting an SD card, the camera activates the archive recording function by a motion detector signal. The recorded archive can be viewed through the TRASSIR-Client application - provided that the camera is connected to TRASSIR Cloud. For the SD card to work correctly, it must be formatted first.
The focal length of the lens is 2.8 mm, the horizontal angle of view is 105 °, the vertical angle is 54 °. Interfaces: RJ-45 network port, power connector. Power supply - DC 12 V. Power - 4.44 W. Size with antenna - 184.7 × 159.3 × 68.0 mm, weight - 480 g.
2 MP (1920 × 1080) IP-camera is equipped with a Wi-Fi module for wireless data transmission, is based on a high-sensitivity (0.0015 lux) 1 / 2.8 "matrix, equipped with a fast (F / 1.0) lens and LED-backlight with a range of 35 m, due to which it broadcasts color video around the clock. Adapted to outdoor use at any time of the year: the case is protected from dust and moisture according to the IP66 standard, operating temperatures - –40 ° C ... +60 ° C, lightning protection - TVS 4000 V.
Functionality:
- - Built-in microphone.
- - Built-in speaker.
- - Detection of people, movement, crossing a virtual line, entering an area, exiting an area, crossing an area.
- - WDR 120 dB - reducing the effect of changes in the level of illumination on the image quality: double scanning with different shutter speeds and the subsequent formation of the final balanced frame.
- - 3D DNR - Noise Reduction.
- - BLC - backlight correction.
- - Defog - Eliminates blur caused by fog or smoke.
- - Compression of H.264, H.264 +, H.265 and H.265 +.
- - Broadcast speed - 25 fps. Bitrate - 8 Mbps.
TR-D2121CL3W (2.8 mm) is equipped with a microSD slot with a capacity of up to 128 GB. By default, after inserting an SD card, the camera activates the archive recording function by a motion detector signal. The recorded archive can be viewed through the TRASSIR-Client application - provided that the camera is connected to TRASSIR Cloud. For the SD card to work correctly, it must be formatted first.
The focal length of the lens is 2.8 mm, the horizontal angle of view is 105 °, the vertical angle is 54 °. Interfaces: RJ-45 network port, power connector. Power supply - DC 12 V. Power - 4.44 W. Size with antenna - 184.7 × 159.3 × 68.0 mm, weight - 480 g.
Documentation
TR-D2121CL3W_passport_en.pdf
